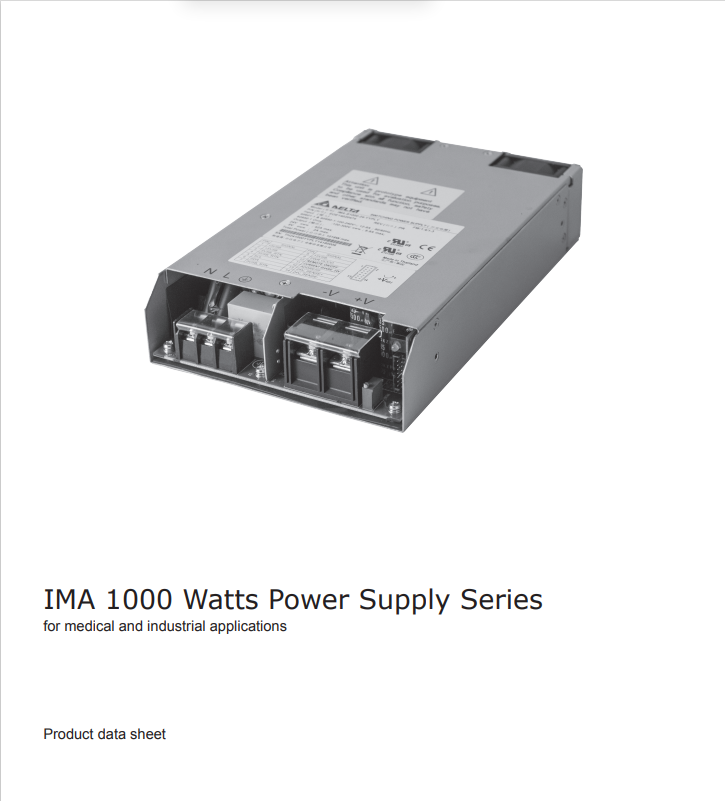

IMA-X1000-48

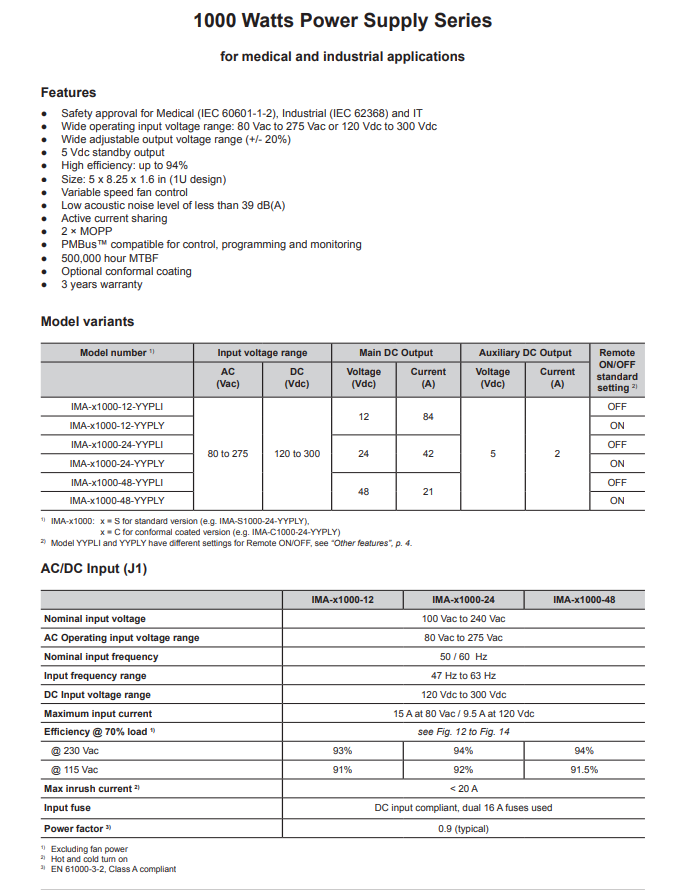

• Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT

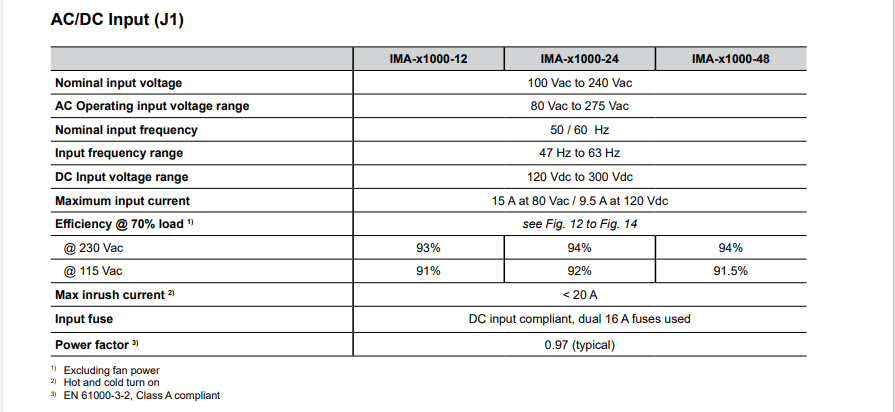

• Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc

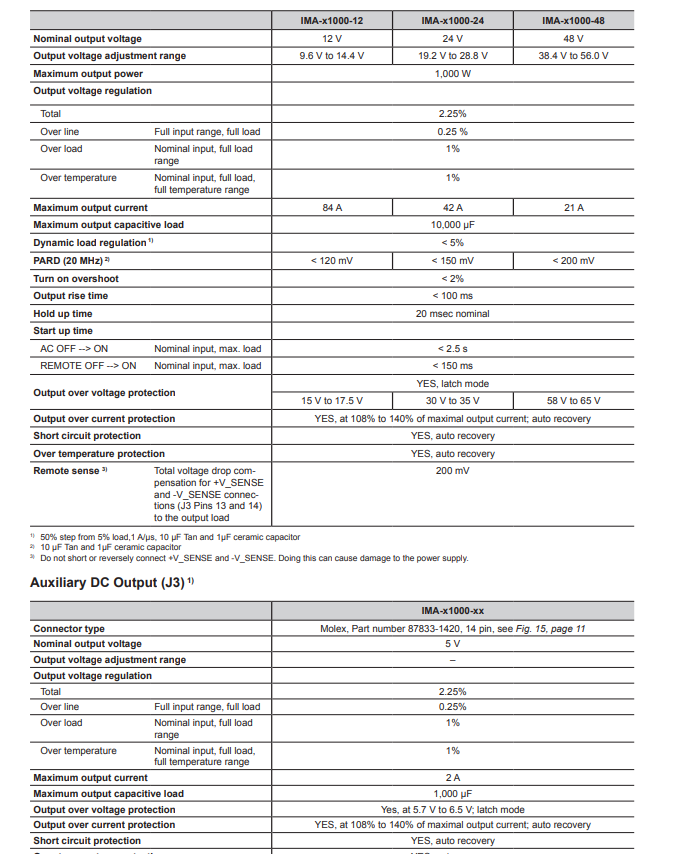

• Wide adjustable output voltage range (+/- 20%)
• 5 Vdc standby output
• High efficiency: up to 94%

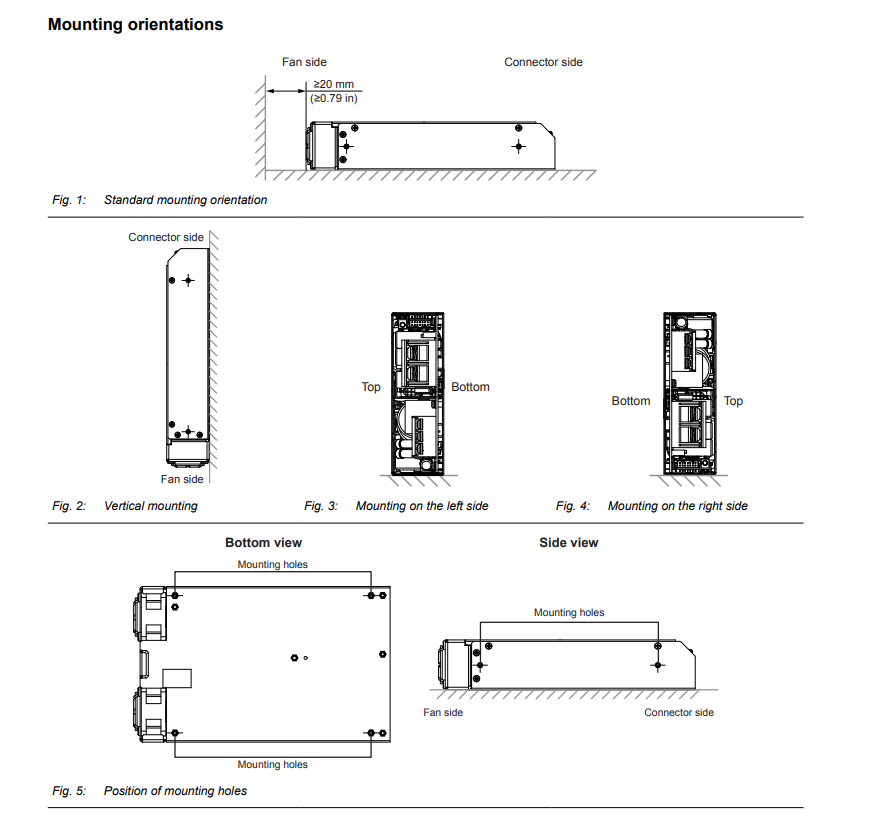

• Size: 5 x 8.25 x 1.6 in (1U design)
• Variable speed fan control
• Low acoustic noise level of less than 39 dB(A)
• Active current sharing
• 2 × MOPP
• PMBus?compatible for control, programming and monitoring
• 500,000 hour MTBF
• Optional conformal coating
