SMH系列伺服電機
歐式設計，性能強勁，低齒槽轉矩，溫升低
可安裝增量式編碼器、絕對值編碼器，旋變編碼器
可選配進口/國產航插
能效等級2級
| 系列 | 規格型號 | 額定功率 | 額定轉矩 | 額定轉速 | 額定電流 | 軸徑 |
| Pn（W) | Tn(Nm) | Nn(rpm) | In(A) | （mm) | ||

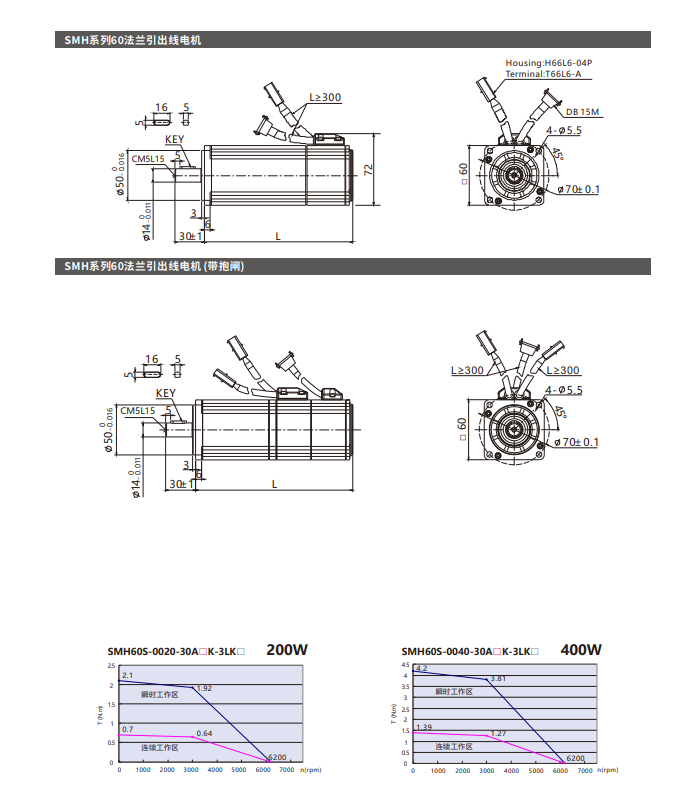

| SMH系列 | SMH60S-0020-30A□K-3LK□ | 200 | 0.64 | 3000 | 1.6 | 14 |
| SMH60S-0040-30A□K-3LK□ | 400 | 1.27 | 3.1 | |||
| SMH80S-0075-30A□K-3LK□ | 750 | 2.39 | 3.9 | 19 | ||
| SMH80S-0100-30A□K-3LK□ | 1000 | 3.18 | 6.3 | |||
| SMH110D-0125-30A□K-4LKC | 1250 | 4 | 3000 | 6.5 | 19 | |
| SMH110D-0126-30A□K-4HKC | 1260 | 4 | 3000 | 4.3 | ||
| SMH110D-0105-20A□K-4LKC | 1050 | 5 | 2000 | 5.9 | ||
| SMH110D-0157-30A□K-4HKC | 1570 | 5 | 3000 | 5.9 | ||
| SMH110D-0126-20A□K-4LKC | 1260 | 6 | 2000 | 6.2 | ||
| SMH110D-0188-30A□K-4HKC | 1880 | 6 | 3000 | 6.2 | ||
| SMH130D-0105-20A□K-4HKC | 1050 | 5 | 2000 | 4.3 | 22 | |
| SMH130D-0157-20A□K-4HKC | 1570 | 7.5 | 6.3 | |||
| SMH130D-0210-20A□K-4HKC | 2100 | 10 | 7.6 | |||
| SMH130D-0300-20A□K-4HKC | 3000 | 14.3 | 7.9 | |||
| SMH150D-0230-20A□K-4HKC | 2300 | 11.1 | 2000 | 7.1 | 32 | |
| SMH150D-0300-20A□K-4HKC | 3000 | 14.3 | 8.5 | |||
| SMH150D-0380-20A□K-4HKC | 3800 | 18 | 9.3 | |||
| SMH180D-0350-15A□K-4HKC | 3500 | 22 | 1500 | 10.3 | 42 | |
| SMH180D-0440-15A□K-4HKC | 4400 | 28 | 11.9 | |||
| SMH180D-0550-15R□K-4HKC | 5500 | 35 | 13.5(REF) | |||
| SMH180D-0750-15RAK-4HKC | 7500 | 48 | 19.2(REF) | |||
| 備注：□=A--無抱閘 | ||||||
| =B--抱閘 | ||||||
| □=H--三排15針編碼器插座 | ||||||
| =N--HFO18系列普通航空插座（朝向出軸） | ||||||
| =P--HFO21+HFO18（動力航插HF021,編碼器航插HF018） | ||||||
